Description

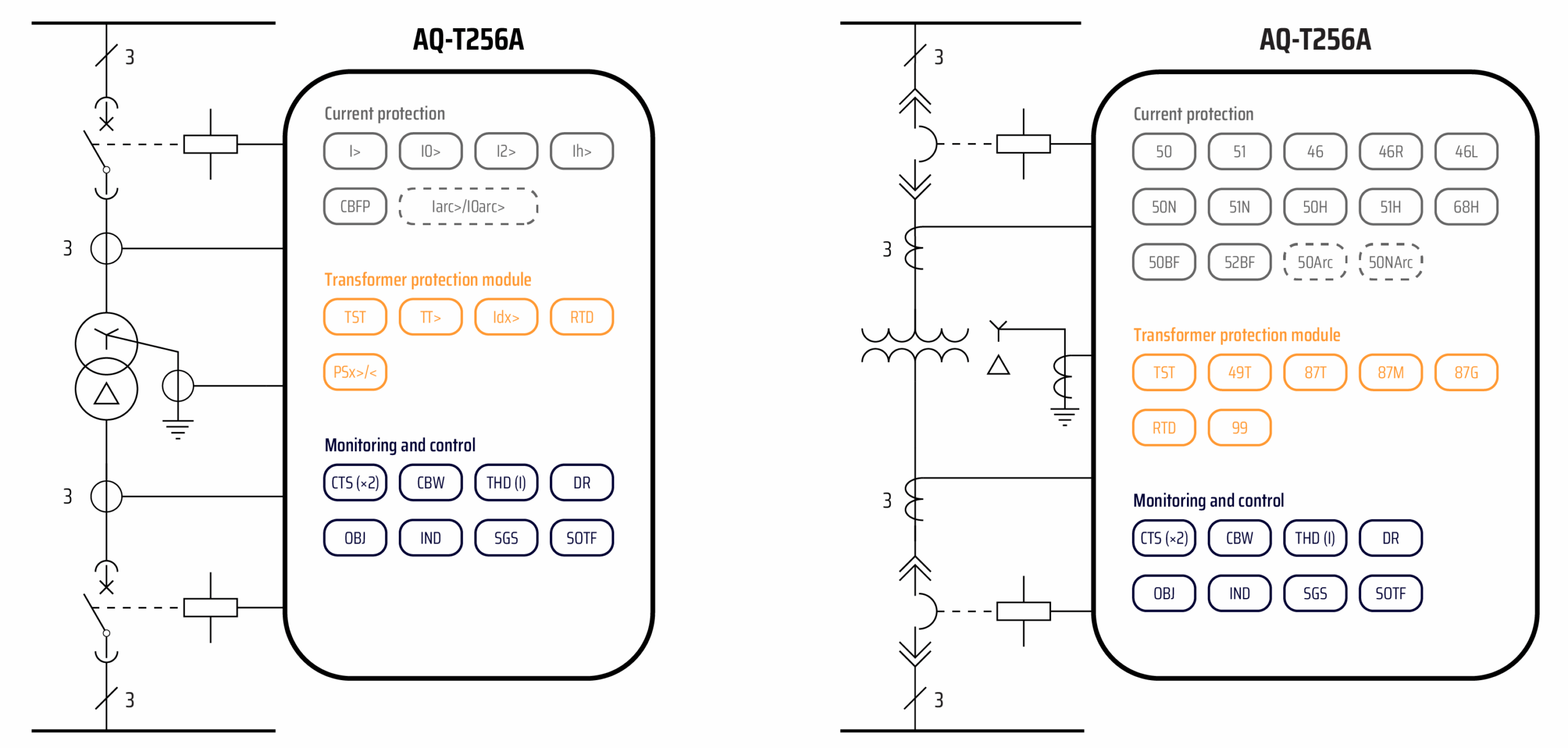

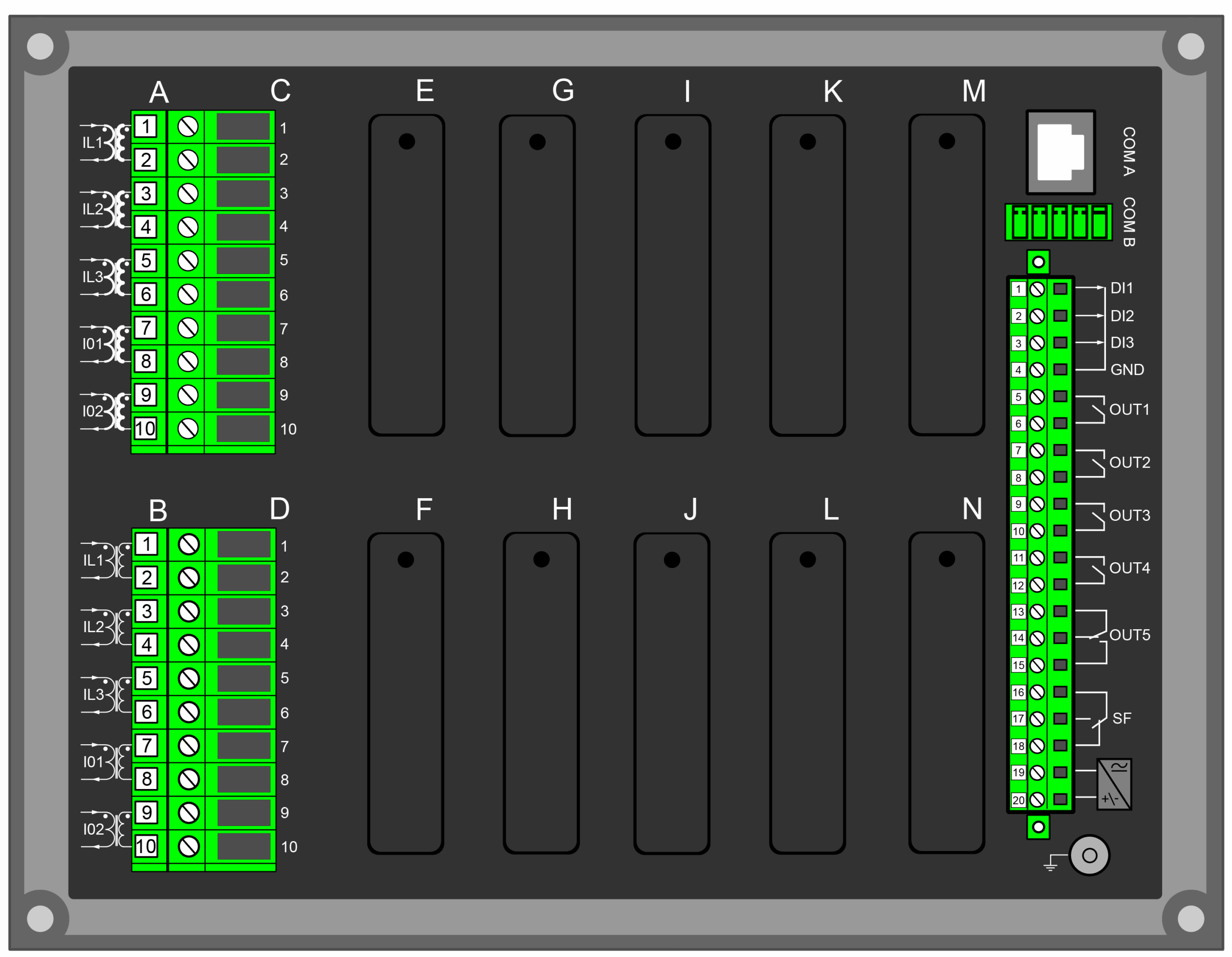

AQ-T256 is a transformer protection device with sophisticated and easy-to-use differential protection functions. The relay provides overcurrent protection for both low-voltage and high-voltage sides, earth fault protection, negative sequence overcurrent protection as well as two independent instances of restricted earth fault protection. You can add up to ten (10) I/O or communication cards into the device for extensive monitoring and control applications. AQ-T256 is a transformer protection device with a sophisticated and easy-to-use differential protection function. communicates using various protocols, including the IEC 61850 substation communication standard.

Highlights:

A large I/O capacity.
Both predefined and customizable connection group selection.
2nd and 5th harmonic blocking.
Automatic verification of connection group and nominal value settings.
Overloading and through fault statistics for preventive maintenance.

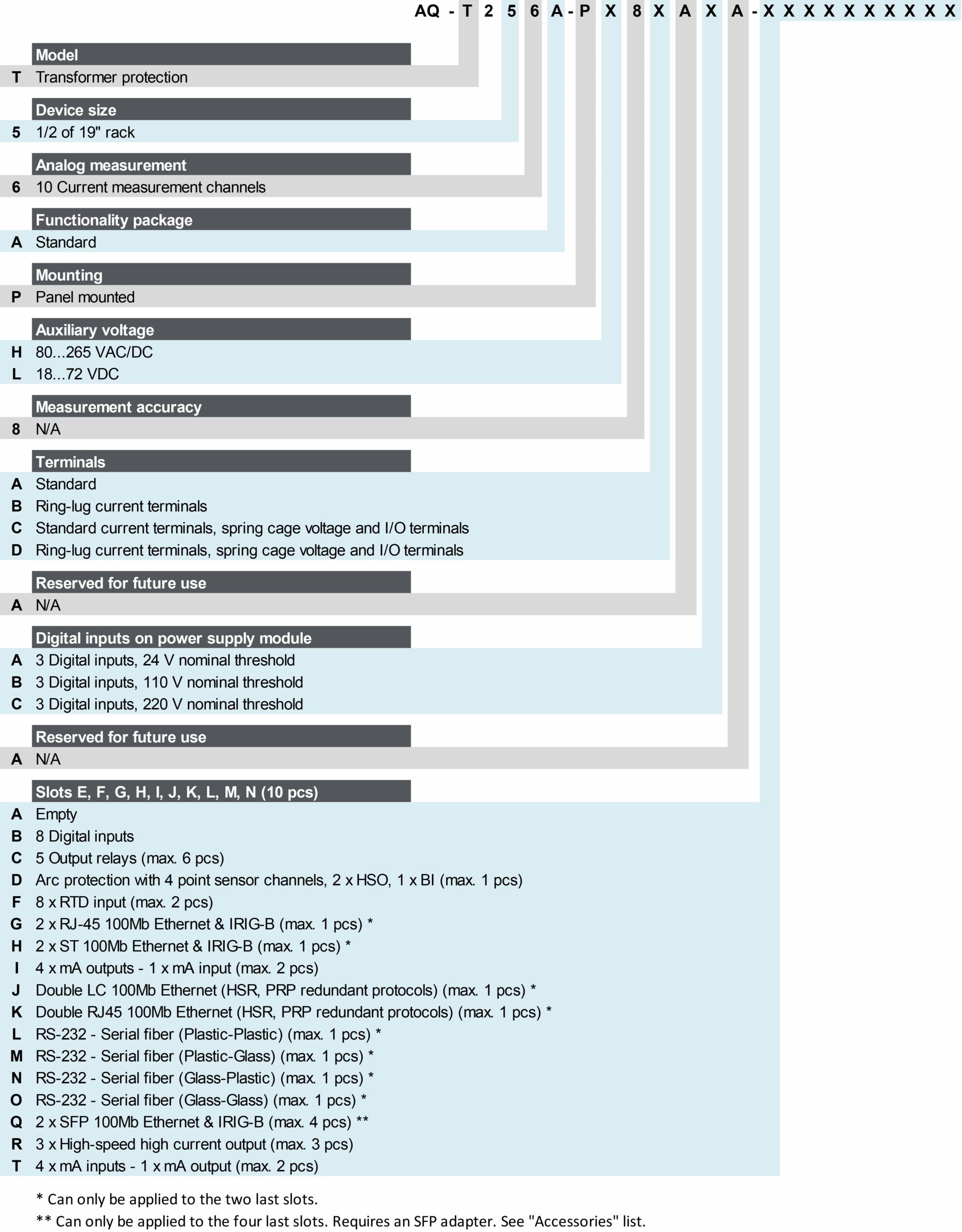

Technical data

Non-directional overcurrent (I>; 50/51) - 4 stages (INST, DT or IDMT)
Non-directional earth fault (I0>; 50N/51N) - 4 stages (INST, DT or IDMT)
Negative sequence overcurrent/ Phase current reversal/ Current unbalance (I2>; 46/46R/46L) - 4 stages (INST, DT or IDMT)
Harmonic overcurrent (Ih>; 50H/51H/68H) - 4 stages (INST, DT or IDMT)
Circuit breaker failure protection (CBFP; 50BF/52BF)
Resistance temperature detectors (RTD)
Transformer thermal overload (TT>; 49T)
Generator/transformer differential (Idx>; 87T/87M/87G)
Transformer status monitoring
Programmable stage (PGx>/<; 99)
Arc protection (IArc>/I0Arc>; 50Arc/50NArc) (optional)
