Description

The AQ-C255 capacitor bank protection devices have been specifically designed for the protection of capacitor banks. They include capacitor bank current unbalance, capacitor bank neutral unbalance, and overload protections in addition to the standard overcurrent, earth fault and voltage protections. AQ-C255 series offers a modular protection and control solution for applications that require a large I/O capacity. You can add up to 11 I/O or communication modules into the devices for extensive monitoring and control applications. The AQ-C255 capacitor bank protection devices communicate using various protocols, including the IEC 61850 substation communication standard.

We offer four (4) variants of the AQ-C255 feeder protection device: A, B, C, and D.

Highlights:

Double busbar control.
A large I/O capacity.
Capacitor bank module with capacitor bank-specific protection functions.
Current- and voltage-based protections.
Cable-end differential protection.
Low-impedance restricted earth fault protection.
Harmonics protection and control.
Power and energy measurement accuracy of up to 0.2 %.
Up to 100 disturbance records.

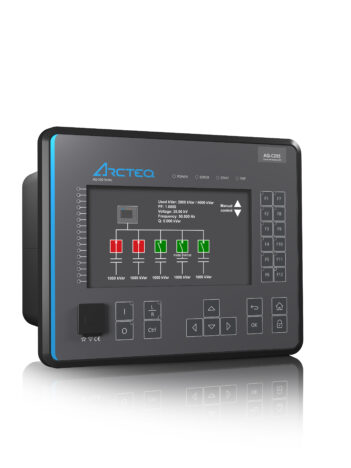

AQ-C255 variants

AQ-C255A

standard capacitor bank functionality

AQ- C255B includes:

PFC (up to 5 capacitor banks)

AQ- C255C includes:

standard voltage protections +
PFC (up to 5 capacitor banks)

AQ- C255D includes:

standard capacitor bank functionality +
PFC (up to 4 capacitor banks)

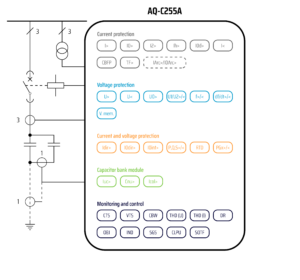

AQ-C255A application drawings, v1.00 (IEC)

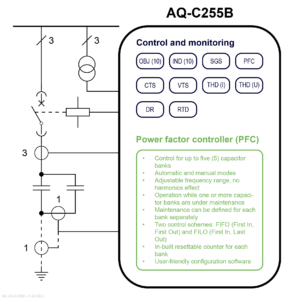

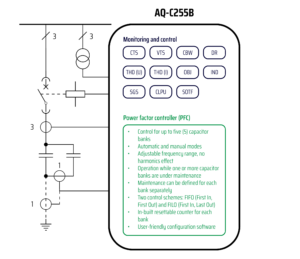

AQ-C255B application drawings, v1.00 (IEC)

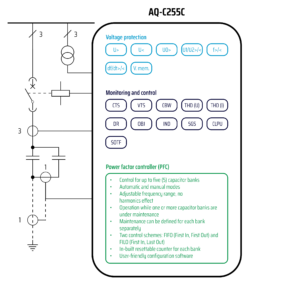

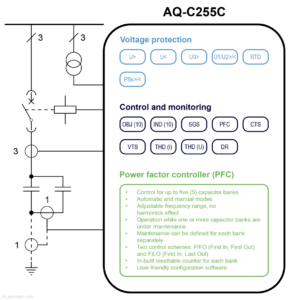

AQ-C255C application drawings, v1.00 (IEC)

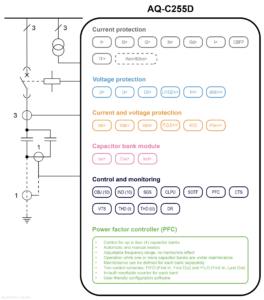

AQ-C255D application drawings, v1.00 (IEC)

Technical data

Capacitor bank module (CBP)
Capacitor bank current unbalance (Iuc>; 46C)
Capacitor bank neutral unbalance protection (Cnu>; 50UB)
Capacitor bank overload protection (Icol>; 49OL)
Non-directional overcurrent (I>; 50/51) - 4 stages (INST, DT or IDMT)
Non-directional earth fault (I0>; 50N/51N) - 4 stages (INST, DT or IDMT)
Directional overcurrent (Idir>; 67) - 4 stages (INST, DT or IDMT)
Directional earth fault (I0dir>; 67N/32N) - 4 stages (INST, DT or IDMT)
Intermittent earth fault (I0int>; 67NT)
Negative sequence overcurrent/ Phase current reversal/ Current unbalance (I2>; 46/46R/46L) - 4 stages (INST, DT or IDMT)
Harmonic overcurrent (Ih>; 50H/51H/68H) - 4 stages (INST, DT or IDMT)
Non-directional undercurrent (I<; 37)
Circuit breaker failure protection (CBFP; 50BF/52BF)
High-impedance or low-impedance restricted earth fault/ Cable end differential (I0d>; 87N)
Overvoltage (U>; 59) - 4 stages (INST, DT or IDMT)
Undervoltage (U<; 27) - 4 stages (INST, DT or IDMT)
Neutral overvoltage (U0>; 59N) - 4 stages (INST, DT or IDMT)
Sequence voltage (U1/U2>/<; 47/27P/59PN) - 4 stages (INST, DT or IDMT)
Overfrequency and underfrequency (f>/<; 81O/81U) - 8 stages (INST or DT)
Rate-of-change of frequency (df/dt>/<; 81R) - 1 stage (DT)
Power protection (P, Q, S>/<; 32) - 4 stages (DT)
Resistance temperature detectors (RTD)
Line thermal overload (TF>; 49F)
Voltage memory
Programmable stage (PGx>/<; 99)
Arc protection (IArc>/I0Arc>; 50Arc/50NArc) (optional)
