AQ-P215 Power monitoring device


AQ-P215 is a novel power monitoring device for demanding metering and power monitoring applications. AQ-P215 offers a unique combination: the high-accuracy power and energy measurement of up to 0.2 % is paired with a dynamic measurement range of up to 250 A (secondary current). Data logging in the flash memory is freely configurable, and the programmable logic and disturbance recorder features allow for a variety of power quality monitoring applications. AQ-P215 communicates using various protocols, including the IEC 61850 substation communication standard.


  • Accuracy class of up to 0.2 %.
  • Patented frequency-independent measurement.
  • The frequency-tracking algorithm guarantees measurement accuracy at 6–75 Hz.
  • Power quality analysis (harmonics, THD and disturbance recording).
  • Ultra-fast Modbus/TCP communication (5 ms update interval).
  • A powerful disturbance recorder with a sampling rate of up to 64 samples per cycle.
  • A dynamic measuring range of up to 250 A (secondary current) – effective disturbance recording when coupled to a protection current transformer.
  • A calendar feature with automatic adjustments for daylight savings time and leap years.
  • Programmable logic functions.
  • An extensive data logging capability.

Technical data

  • Resistance temperature detectors (RTD)
  • Voltage memory
  • Programmable stage (PGx>/<; 99)

  • Voltage and current harmonics (up to 31st)
  • Total harmonic distortion (current)
  • Total harmonic distortion (voltage)
  • Event recorder (max. 15 000 permanent event records)
  • Disturbance recorder (max. 100 records á 5 seconds at 3.2 kHz sampling)

  • Number of setting groups: 8

  • Phase, sequence and residual currents (IL1, IL2, IL3, I01, I02)
  • Phase, sequence and residual voltages (UL1, UL2, UL3, U12, U23, U31, U0)
  • Phase and residual angles
  • Frequency (f)
  • Power (P, Q, S, pf) and Energy (E+, E-, Eq+, Eq-)
  • Power directions (tan φ & cos φ)
  • Power and energy measurement accuracy of up to 0.2 %
  • Running hour counter
  • Measurement recorder

  • Current inputs: 5
  • Voltage inputs: 4
  • Digital inputs (fixed): 3
  • Digital outputs (fixed): 5
  • Number of empty slots: 3
  • Digital inputs: +8/16/24 (optional)
  • Digital outputs: +5/10 (optional)
  • Milliampere I/O module (4 mA outputs + 1 mA input)
  • Communication media (see "Communication" below)
  • External I/O modules (see "Accessories" below)

  • Communication inputs
  • RJ-45 100 Mbps Ethernet (front panel, fixed)
  • RJ-45 100 Mbps Ethernet and RS-485 (rear panel, fixed)
  • 2 x RJ-45 100 Mbps Ethernet with an IRIG-B input (optional)
  • 2 x ST 100 Mbps Ethernet with an IRIG-B input (optional)
  • 2 x LC 100 Mbps Ethernet (PRP/HSR) (optional)
  • RS-232 serial fiber (PP/PG/GP/GG) (optional)
  • Communication protocols
  • IEC 61850 (edition 1)
  • IEC 60870-5-101/104
  • IEC 60870-5-103
  • Modbus/RTU and Modbus/TCP
  • DNP3
  • SPA

  • AX007 External 6-channel 2-/3-wire RTD input module (pre-configured)
  • AX008 External 8-channel thermocouple and mA input module (pre-configured)
  • AX009 Raising frame (87 mm)
  • AX010 Raising frame (40 mm)
  • AX011 Combiflex frame
  • AX012 Wall mounting bracket

Additional material

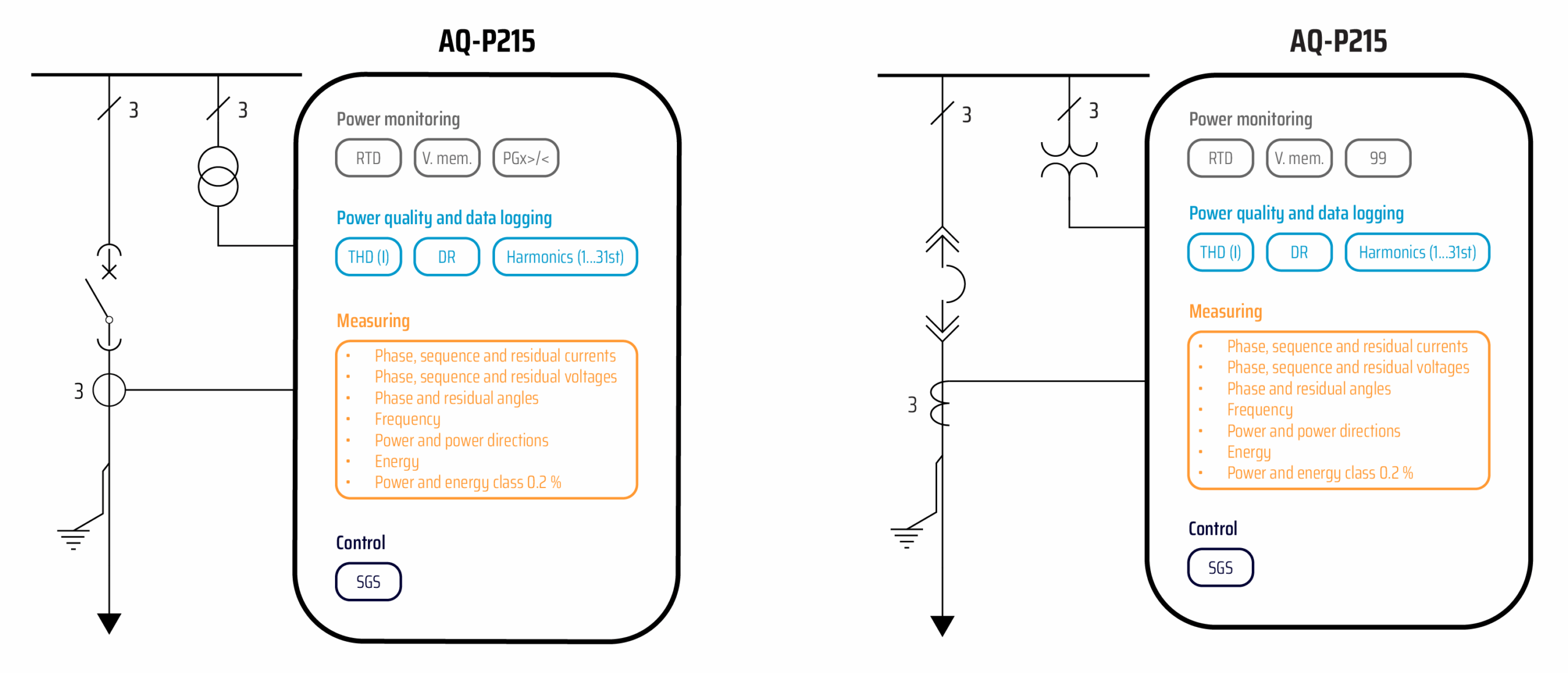

Application Drawing

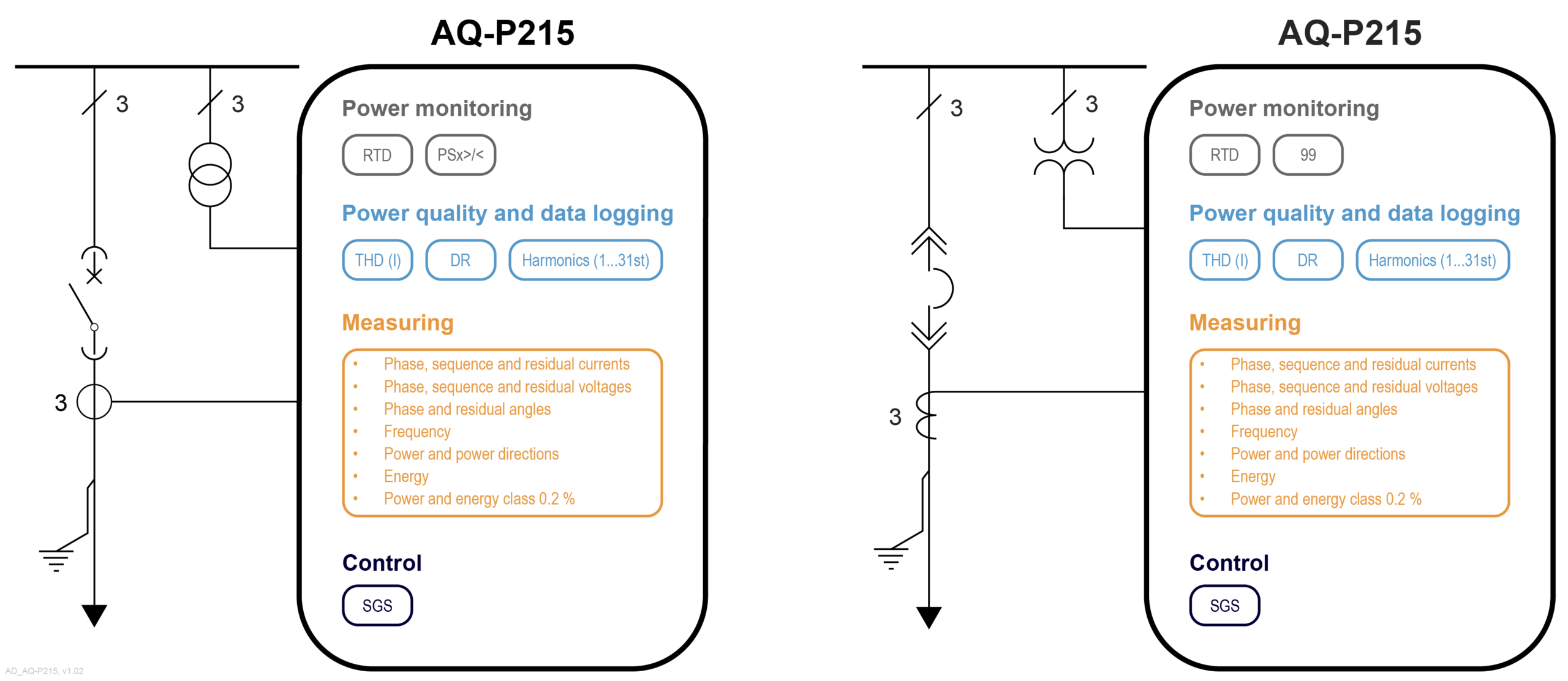

An application image for AQ-P215 power monitoring device, with one version drawn according to IEC standard symbols and the other according to IEEE/ANSI standard symbols.

Device Rear Image

Device rear image_AQ-215_AAA

Device and Cut-out Image

AQ-210 dimensions and cut-out

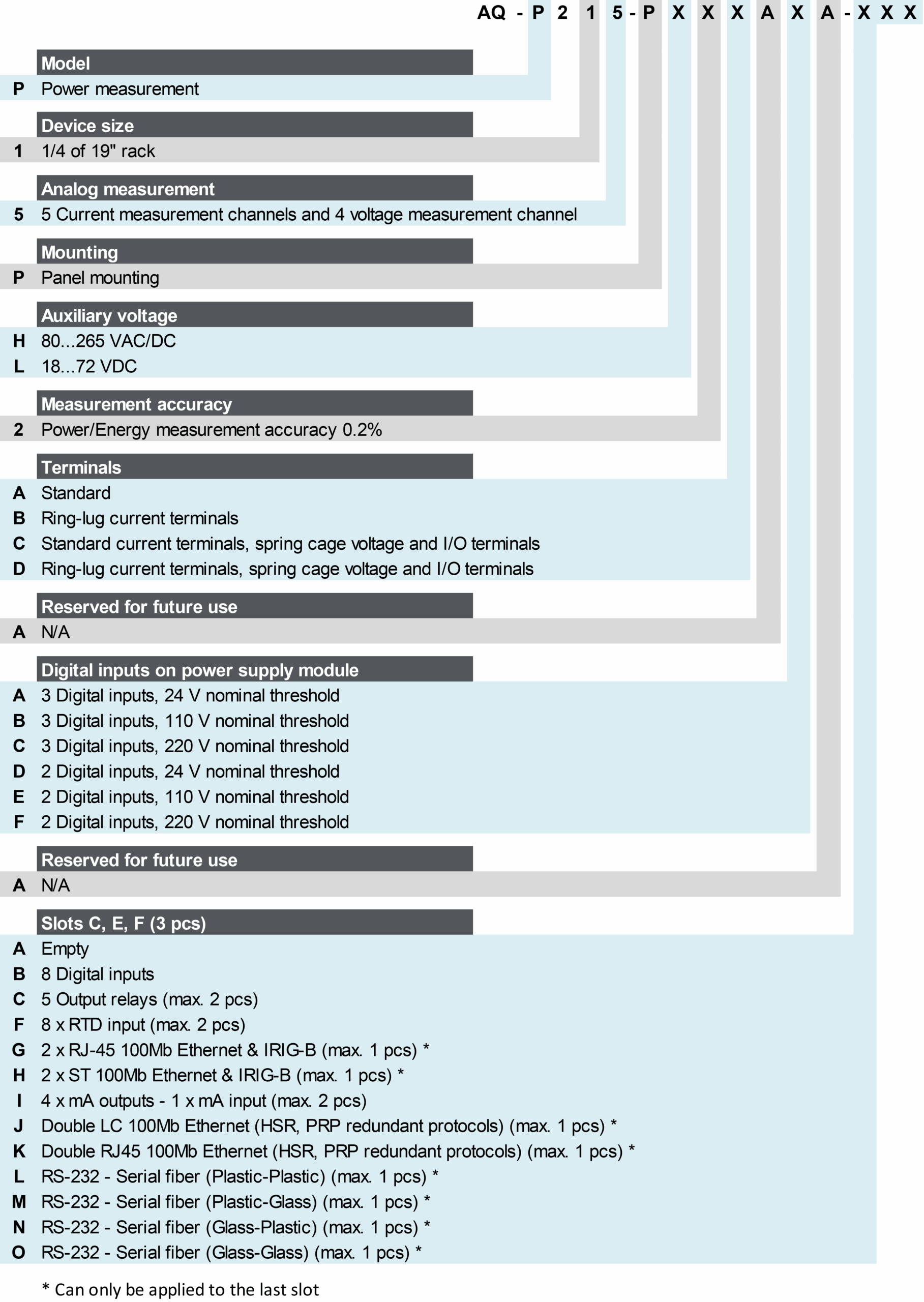

Order Code

Order code_P215
