Description

AQ-F210 offers a modular feeder protection and control solution, with non-directional overcurrent and earth fault protections with an automatic recloser. You can add up to four (4) I/O or communication cards into the device for more comprehensive monitoring and control applications. AQ-F210 communicates using various protocols, including communication according to the IEC 61850 standard.

Highlights:

Cable-end differential protection.
Low-impedance restricted earth fault protection.
Harmonics protection and control.
A 5-shot scheme-controlled auto-recloser.

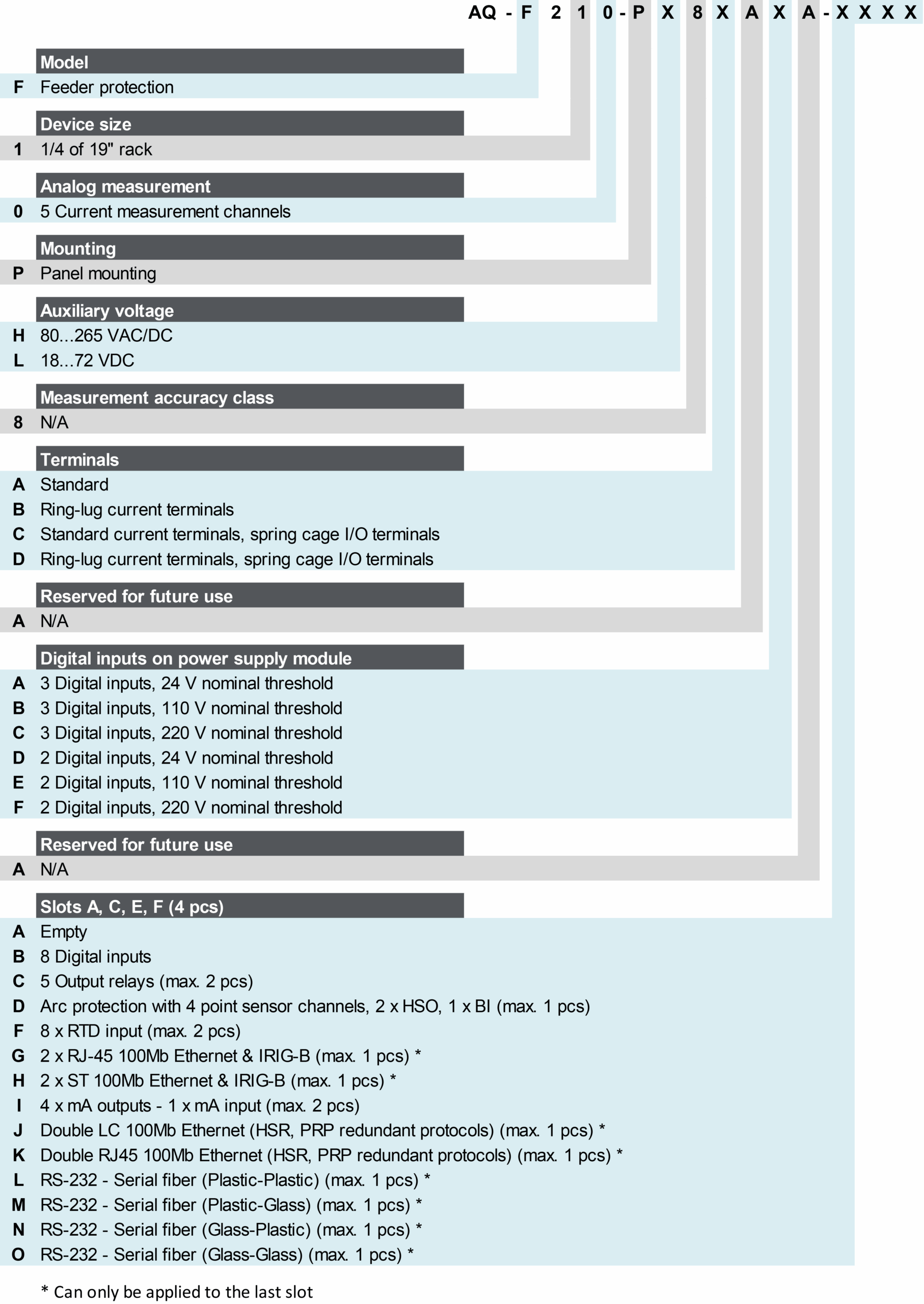

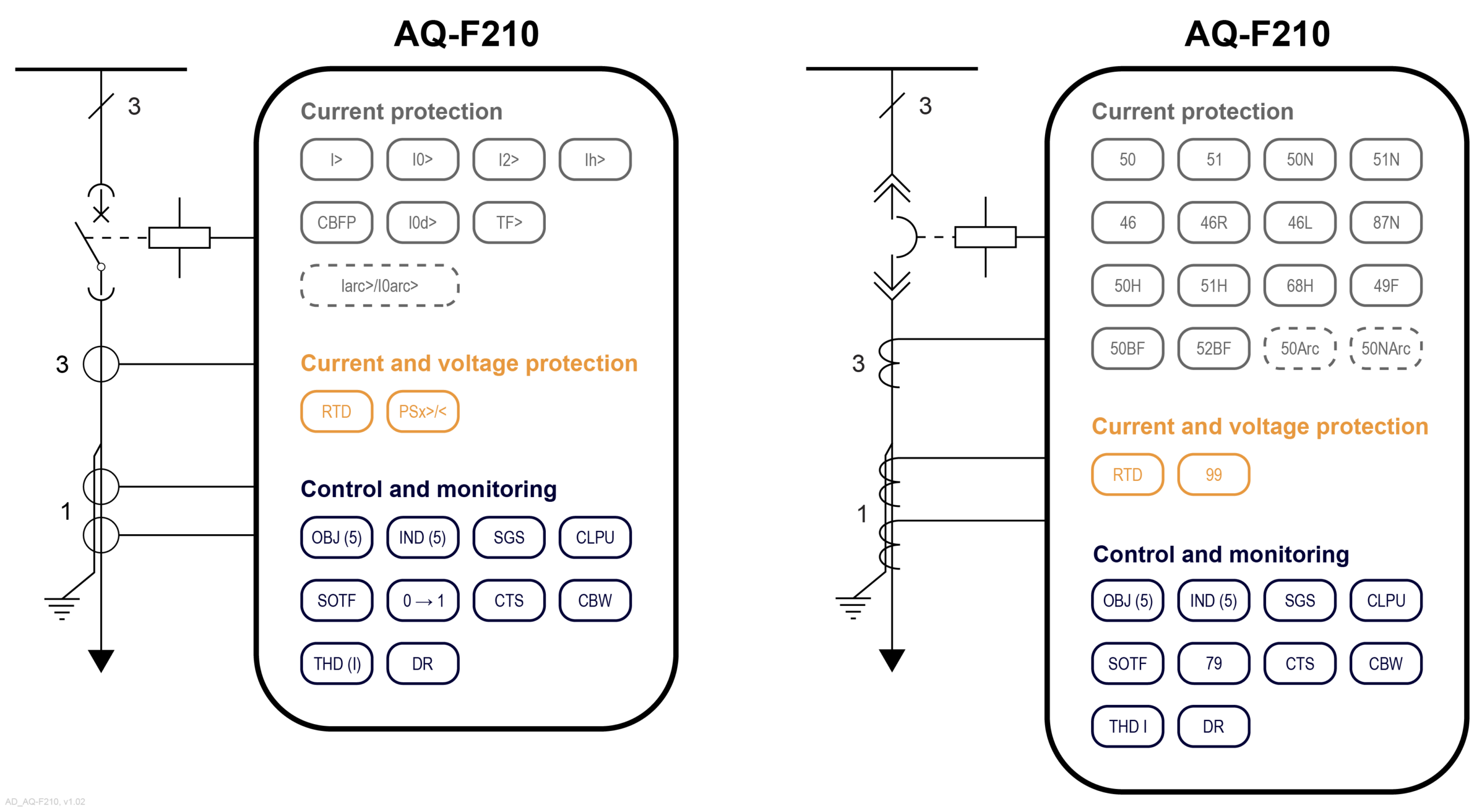

Technical data

Non-directional overcurrent (I>; 50/51) - 4 stages
Non-directional earth fault (I0>; 50N/51N) - 4 stages
Negative sequence overcurrent/ Phase current reversal/ Current unbalance (I2>; 46/46R/46L) - 4 stages
Harmonic overcurrent (Ih>; 50H/51H/68H) - 4 stages
Circuit breaker failure protection (CBFP; 50BF/52BF)
High-impedance or low-impedance restricted earth fault/ Cable end differential (I0d>; 87N)
Line thermal overload (TF>; 49F)
Resistance temperature detectors (RTD)
Programmable stage (PSx>/<; 99)
Arc protection (IArc>/I0Arc>; 50Arc/50NArc) (optional)
