AQ-C215 Capacitor bank protection device
The AQ-C215 capacitor bank protection device has been specifically designed for the protection of capacitor banks. […]
Arcteq offers dedicated devices for capacitor bank protection. The devices vary depending on the purpose and functionality of the application: they can be used for both automatic and manual power factor control applications and can contain a variety of dedicated protection functions.
The AQ-C215 capacitor bank protection device has been specifically designed for the protection of capacitor banks. […]

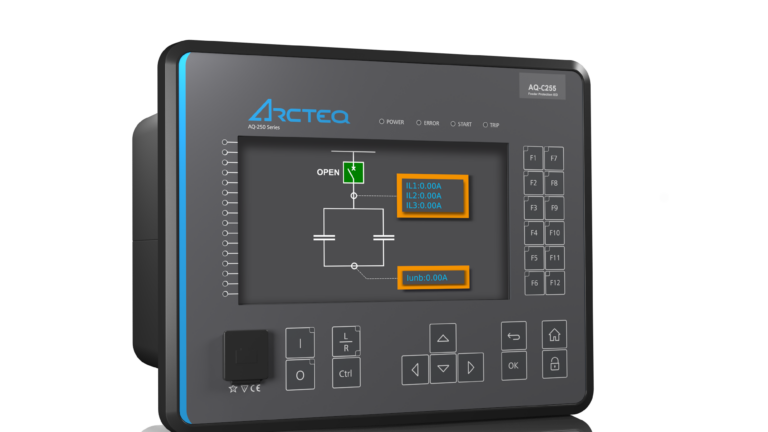

The AQ-C255A capacitor bank protection device has been specifically designed for the protection of capacitor banks. […]
Capacitor banks are commonly used to improve the quality of the electrical supply and the efficient operation of the power system. The main purpose of the capacitor installation is to provide capacitive compensations and power factor corrections. Arcteq’s capacitor bank protection devices provide an extensive range of capacitor connection selections as well as the specific capacitor overload protection function allowing you to freely program the overload curve.
Application Engineer Raj Kumar explains the various capacitor bank connections, and shows you how to set up the capacitor bank overload curve. He also demonstrates how to set up other important capacitor bank protection functions, such as overload protection, current unbalance protection, and neutral current unbalance protection.
Arcteq has developed the communication tool AQwire which is very handy when configuring, for example, the IEC 61850 communication protocol in a protection relay. Application Engineer Raj Kumar explains how to use this tool in a real environment, and how to test the communication of all communication protocols available in AQ 200 products.
Application Engineer Niko Muotio explains how to use both the basic and the more advanced features of the mimic editor in AQ-25x protection devices. These features include adding and editing items, images and text, as well as adding control functionalities and measurements to items. You will also learn how to manage multiple mimics with a single device.
Customer Service Manager Joni Leppilahti gives an introduction to relay communication with the IEC 61850 communication protocol with GOOSE. He also demonstrates how to configure the protocol and GOOSE for an AQ 200 series device, and how to test the configuration with Arcteq’s AQwire communication tool.
The video for the AQ-25x product line, describing the many functionalities in the devices.
