Fault detection devices
AQ-50-XXXX3 (left)_1080x1440_uusi
AQ-50-XXXX3 (left)_1080x1440_uusi

Description

The AQ-50 fault detection devices leave no fault in distribution networks unnoticed. They have a superior capability to detect even the most challenging faults, such as high-impedance and intermittent earth faults with a fault current as low as 0.5 A. This allows them to deliver a fault detection accuracy you can rely on.

The AQ-50 fault detection is based only on phase current measurements. This saves space and significantly reduces costs as there is no need for separate voltage measurements. All this makes AQ-50 devices easy to fit in both new and retrofit installations. The AQ-50 devices are applicable to any type of cable or overhead line distribution network whether they are compensated, isolated, or directly earthed.

Highlights:

  • Three variants for up 1, 3, or 6 feeders.
  • Detects even the most challenging faults, with a fault current as low as 0.5 A.
  • Applicable to a wide variety of applications as devices can be ordered with up to 37 binary inputs, up to 22 binary outputs, and up to 9 phase current inputs.
  • Comes with a built-in web interface.
  • You can select two additional functionality options for your device:
    • IEC 101 master protocol, and/or
    • automatic fault location, isolation and service restoration (FLISR).

Read more about our fault detection technology. Additionally, learn more about how our AQ-50 fault detection devices and software tools work for your application!

AQ-50 variants:

AQ-50-XXXX1 is a fault detection device for one (1) feeder. The device contains 16 binary inputs, 8 binary outputs, and 3 phase current inputs as well as a built-in web interface.

Read more

AQ-50-XXXX3 is a fault detection device for three (3) feeders. The device contains 16 binary inputs, 8 binary outputs, and 9 phase current inputs as well as a built-in web interface.

Read more

AQ-50-XXXX1 is a fault detection device for six (6) feeders. The device contains 22 binary inputs, 13 binary outputs, and 18 phase current inputs as well as a built-in web interface.

Read more

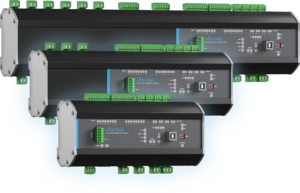

Uusi ryhmäkuva
AQ-50-XXXX1 (left)_cropped

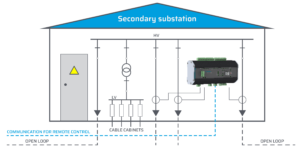

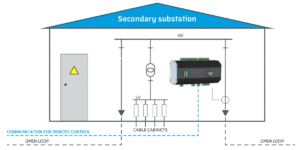

AQ-50 application
AQ-50-XXXX6 (left)_cropped
