AQ-S254 Alarm and indication device


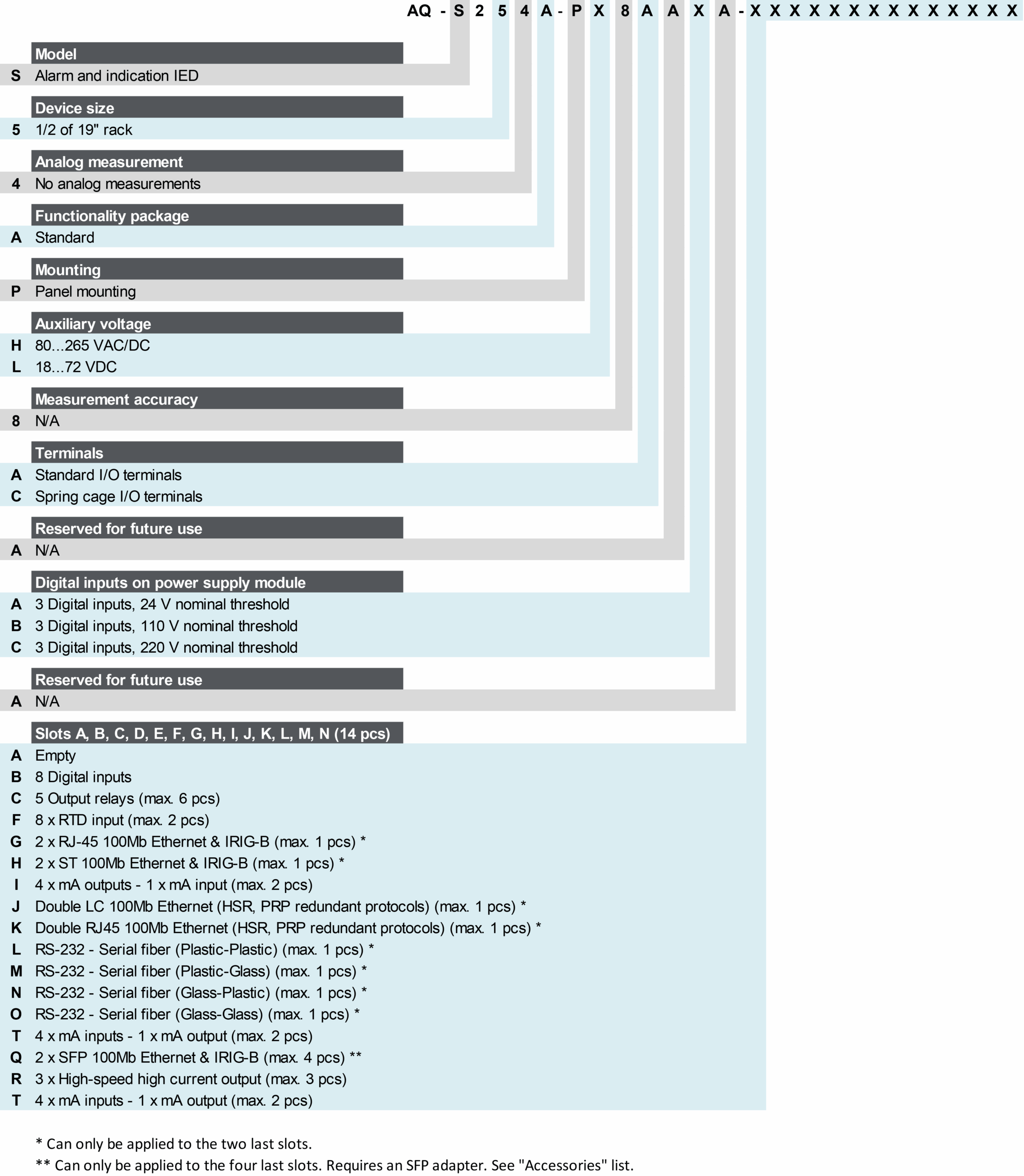

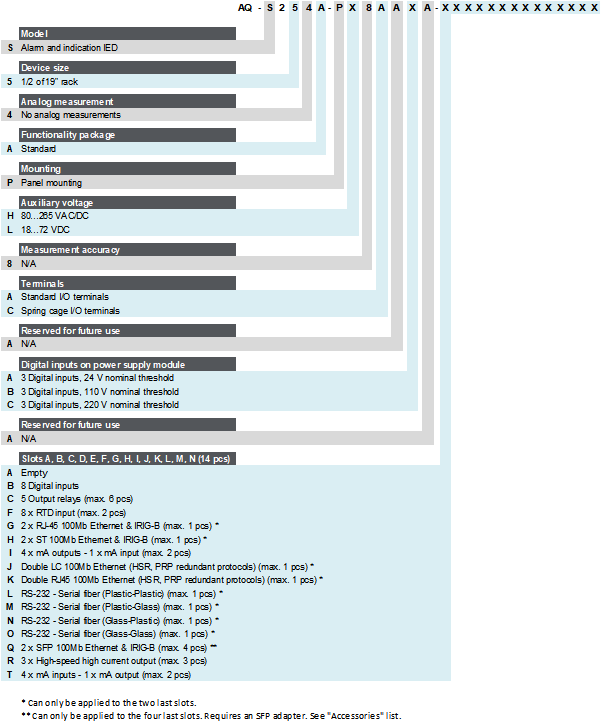

AQ-S254 Alarm and indication device AQ-S254 Alarm and indication device Ask for an offer Home Protection relays Alarm annunciators AQ-S254 Alarm and indication device Description The AQ-S254 alarm and indication device can be applied to various substation tasks: extending the general I/O, sounding alarms, and control. You can add up to fourteen (14) I/O or communication cards into the device, depending on the requirements of your application. The logic programming is powerful and easy to use. It also further expands the device’s application range towards more demanding control, alarm and indication needs. The HMI is large and can be freely programmed, and provides a quick visualization of the object as well as the status of alarms and events. AQ-S254 communicates using various protocols, including the IEC 61850 substation communication standard. Highlights: Modern alarm sounding and I/O extension with IEC 61850 and GOOSE communication. Control and status indication for 20 objects. A full mimic diagram with busbar coloring. A full-color display for up to 128 alarms. Technical data Resistance temperature detectors (RTD) Programmable stage (PGx>/<; 99) Number of objects to control and monitor: 10 Number of indicators to monitor: 20 Number of alarms to program: 128 Number of setting groups: 8 Event recorder (max. 15 000 permanent event records) Disturbance recorder (max. 100 records á 5 seconds at 3.2 kHz sampling) Digital inputs (fixed): 3 Digital outputs (fixed): 5 Number of empty slots: 14 Digital inputs: +8/16/24/32/40/48/56/64/72/80/88/96/104/112 (optional) Digital outputs: +5/10/15/20/25/30 (optional) High-speed high-current output module (optional) Milliampere I/O module (4 mA inputs + 1 mA output) (optional) Milliampere I/O module (4 mA outputs + 1 mA input) (optional) RTD input module (8 RTD inputs) (optional) Communication media (see "Communication" below) External I/O modules (see "Accessories" below) Communication inputs RJ-45 100 Mbps Ethernet (front panel, fixed) RJ-45 100 Mbps Ethernet and RS-485 (rear panel, fixed) Double RJ-45 Ethernet & IRIG-B communication module (optional) Double ST Ethernet & IRIG-B communication module (optional) Double SFP Ethernet & IRIG-B communication module (optional) Double LC (HSR/PRP) Ethernet communication module (optional) Double RJ-45 (HSR/PRP) Ethernet communication module (optional) RS-232 & serial fiber communication module (optional) Communication protocols IEC 61850 (edition 1) IEC 61850 (edition 2) IEC 60870-5-101/104 IEC 60870-5-103 Modbus/RTU and Modbus/TCP DNP3 SPA AX007 External 6-channel 2-/3-wire RTD input module (pre-configured) AX008 External 8-channel thermocouple and mA input module (pre-configured) AX013 Raising frame (120 mm) AX014 Raising frame (40 mm) AX015 Wall mounting bracket Additional material Application Drawing Device Rear Image Device and Cut-out Image Order Code Download application drawing Download device rear image Download device and cut-out dimensions Download order code Download AQ 200 series flyer, v2.01 (English) AQ 200 series flyer, v2.01 (Finnish) AQ 200 series flyer, v2.01 (Swedish) AQ 200 series product catalog (ANSI, v2.03, EN, September 2024) AQ 200 series product catalog (IEC, v2.03, EN, September 2024) AQ-S254 product flyer, v1.00 (English) AQ-S254 product flyer, v1.00 (Spanish) AQ-S254 product flyer, v1.00 (Swedish) AQtivate PRO flyer, v1.00 (English) AQtivate PRO flyer, v1.00 (Finnish) AQ-S254 Instruction manual (v2.13, English) AQ 200 series DNP3 device profile v4.00 (English) AQ 200 series DWG connection drawings (.zip file) AQ 200 series IEC 103 interoperability list v1.00 (English) AQtivate 200 Instruction manual v2.02 (English) Related products AQ-S214 Alarm and indication device The AQ-S214 alarm and indication device can be applied to various substation tasks, such as extending […] Ask for an offer or more information We provide a comprehensive range of services through our own skilled staff and a global network of partners. Name(Required) First Last Country(Required) Email(Required) Add attachment Company(Required) Max. file size 300 MB Phone Add attachment Max. file size: 10 MB. Description(Required) What colour is a firetruck?(Required) To confirm you are not a robot, please answer this question. GDPR(Required) I agree to the Privacy Policy *

Description

The AQ-S254 alarm and indication device can be applied to various substation tasks: extending the general I/O, sounding alarms, and control. You can add up to fourteen (14) I/O or communication cards into the device, depending on the requirements of your application. The logic programming is powerful and easy to use. It also further expands the device’s application range towards more demanding control, alarm and indication needs. The HMI is large and can be freely programmed, and provides a quick visualization of the object as well as the status of alarms and events. AQ-S254 communicates using various protocols, including the IEC 61850 substation communication standard.

Highlights:
