AQ-M215 Motor protection device
Home Protection relays Motor protection & control AQ-M215 Motor protection device
Description

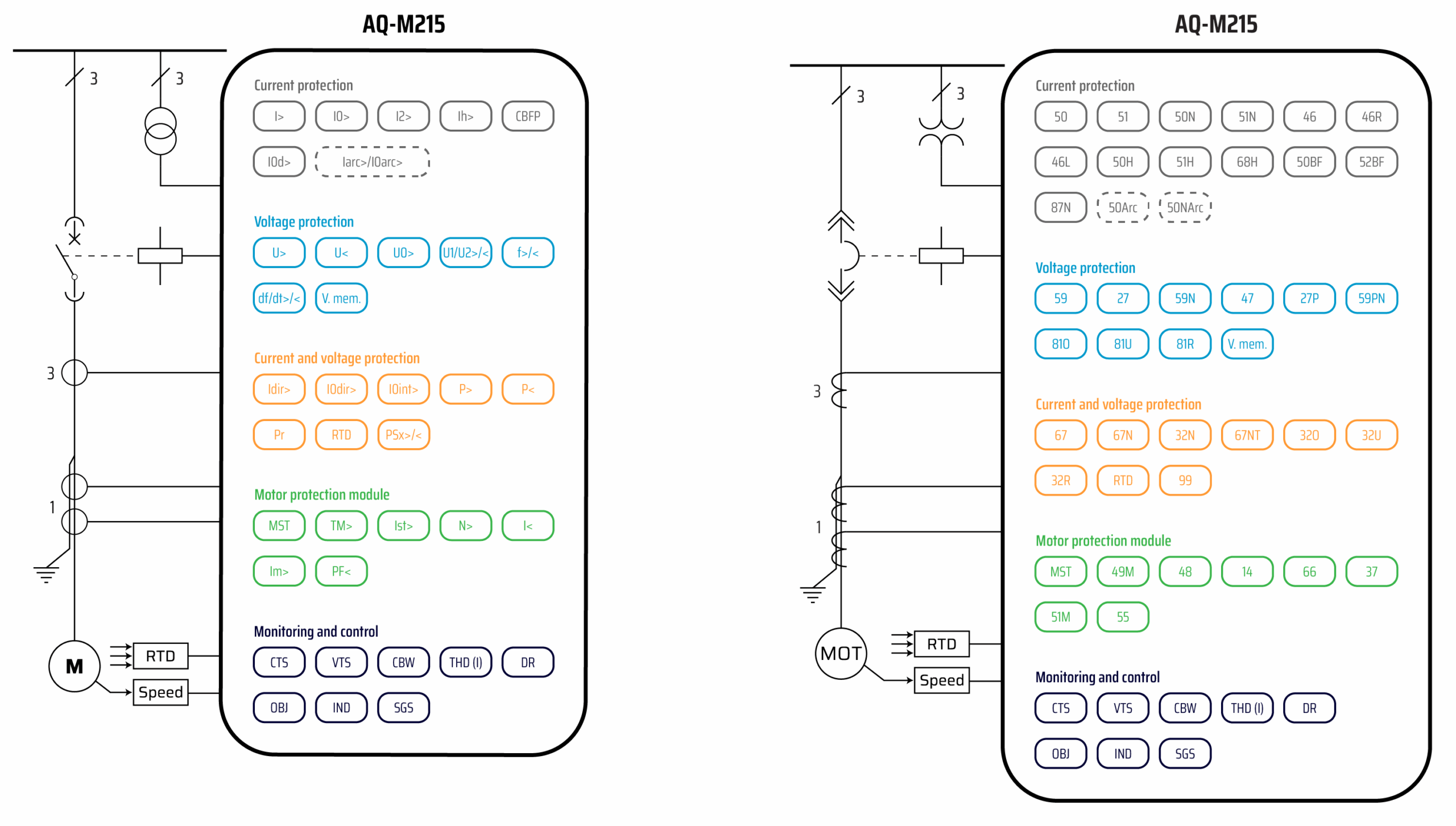

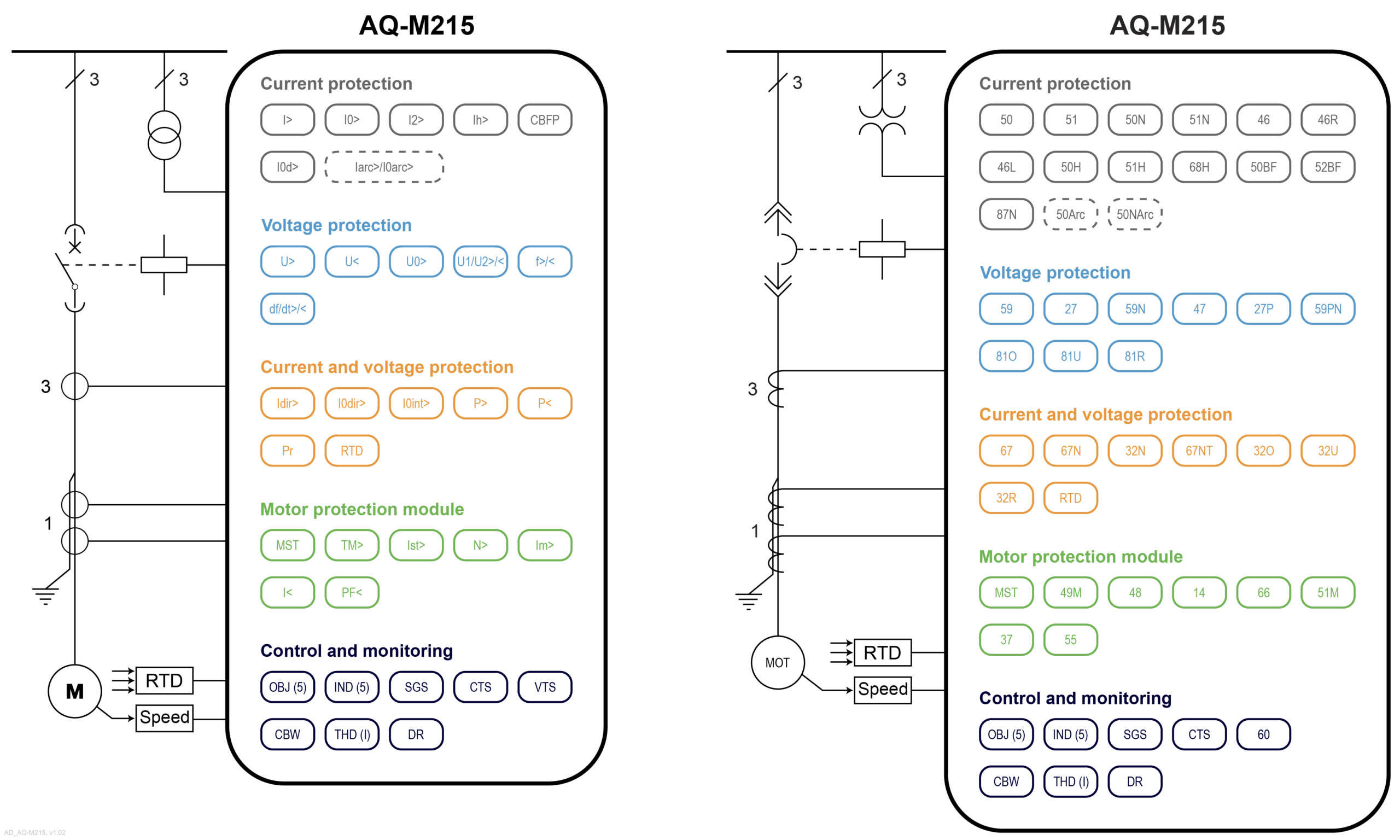

The AQ-M215 motor protection device offers a modular protection and control solution for larger and more important motors that require both current-based and voltage-based protection functions along with complete measurements. You can add up to three (3) I/O or communication cards into the device for more comprehensive monitoring and control applications. You can also connect up to sixteen (16) RTD signals for thermal alarming and tripping. AQ-M215 communicates using various protocols, including the IEC 61850 substation communication standard.
Highlights:
Powerful motor management.
Five (5) thermal models (time constant accurate).
Soft start protection beginning from 6 Hz.
Wye-delta started motor supervision.
Two-speed motor protection.
Optional power and energy measurement accuracy of up to 0.2 %.

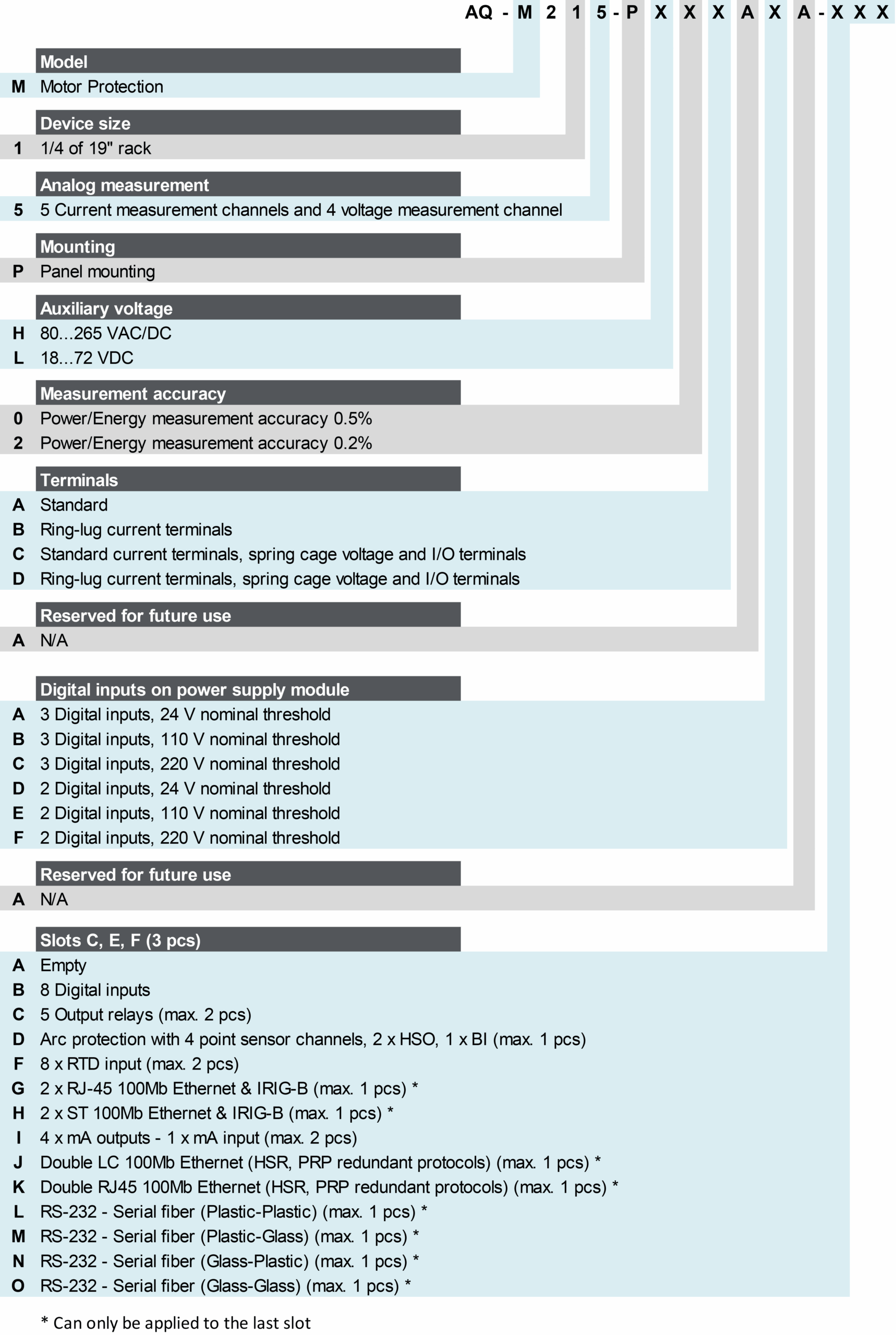

Technical data
Non-directional overcurrent (I>; 50/51) - 4 stages (INST, DT or IDMT)
Non-directional earth fault (I0>; 50N/51N) - 4 stages (INST, DT or IDMT)
Directional overcurrent (Idir>; 67) - 4 stages (INST, DT or IDMT)
Directional earth fault (I0dir>; 67N/32N) - 4 stages (INST, DT or IDMT)
Intermittent earth fault (I0int>; 67NT)
Negative sequence overcurrent/ Phase current reversal/ Current unbalance (I2>; 46/46R/46L) - 4 stages (INST, DT or IDMT)
Harmonic overcurrent (Ih>; 50H/51H/68H) - 4 stages (INST, DT or IDMT)
Circuit breaker failure protection (CBFP; 50BF/52BF)
High-impedance or low-impedance restricted earth fault/ Cable end differential (I0d>; 87N)
Overvoltage (U>; 59) - 4 stages (INST, DT or IDMT)
Undervoltage (U<; 27) - 4 stages (INST, DT or IDMT)
Neutral overvoltage (U0>; 59N) - 4 stages (INST, DT or IDMT)
Sequence voltage (U1/U2>/<; 47/27P/59PN) - 4 stages (INST, DT or IDMT)
Overfrequency and underfrequency (f>/<; 81O/81U) - 8 stages (INST or DT)
Rate-of-change of frequency (df/dt>/<; 81R) - 8 stages (INST or DT)
Overpower (P>; 32O)
Underpower (P<; 32U)
Reverse power (Pr; 32R)
Motor status monitoring
Machine thermal overload (TM>; 49M)
Motor start/ Locked rotor monitoring (Ist>; 48/14)
Frequent start (N>; 66)
Non-directional undercurrent (I<; 37)
Mechanical jam (Im>; 51M)
Power factor protection (PF<; 55)
Voltage memory
Resistance temperature detectors (RTD)
Programmable stage (PGx>/<; 99)
Arc protection (IArc>/I0Arc>; 50Arc/50NArc) (optional)
Number of objects to control and monitor: 5
Number of indicators to monitor: 5
Number of setting groups: 8
Phase, sequence and residual currents (IL1, IL2, IL3, I01, I02)
Phase, sequence and residual voltages (UL1, UL2, UL3, UL12, UL23, UL31, U0)
Frequency (f)
Power (P, Q, S, pf) and Energy (E+, E-, Eq+, Eq-)
Power and energy class 0.5
Power and energy measurement accuracy of up to 0.2 % (optional)
Current transformer supervision
Voltage transformer supervision (60)
Circuit breaker wear monitoring
Total harmonic distortion (current)
Running hour counter
Measurement recorder
Measurement value recorder
Event recorder (max. 15 000 permanent event records)
Disturbance recorder (max. 100 records á 5 seconds at 3.2 kHz sampling)
Current inputs: 5
Voltage inputs: 4
Digital inputs (fixed): 3
Digital outputs (fixed): 5
Number of empty slots: 3
Digital inputs: +8/16/24 (optional)
Digital outputs: +5/10 (optional)
Milliampere I/O module (4 mA outputs + 1 mA input) (optional)
RTD input module (8 RTD inputs) (optional)
Arc protection module (4 sensors + 2 HSO + 1 BI) (optional)
Communication media (see "Communication" below)
External I/O modules (see "Accessories" below)
Communication inputs
RJ-45 100 Mbps Ethernet (front panel, fixed)
RJ-45 100 Mbps Ethernet and RS-485 (rear panel, fixed)
Double RJ-45 Ethernet & IRIG-B communication module (optional)
Double ST Ethernet & IRIG-B communication module (optional)
Double LC (HSR/PRP) Ethernet communication module (optional)
Double RJ-45 (HSR/PRP) Ethernet communication module (optional)
RS-232 & serial fiber communication module (optional)
Communication protocols
IEC 61850 (edition 1)
IEC 60870-5-101/104
IEC 60870-5-103
Modbus/RTU and Modbus/TCP
DNP3
SPA
AX007 External 6-channel 2-/3-wire RTD input module (pre-configured)
AX008 External 8-channel thermocouple and mA input module (pre-configured)
AX009 Raising frame (87 mm)
AX010 Raising frame (40 mm)
AX011 Combiflex frame
AX012 Wall mounting bracket
