AQ-G215 Generator protection device
AQ-G215_web_v3
AQ-G215_web_v3

Description

The AQ-G215 generator protection device is well-suited for machines that require complete generator protections. AQ-G215 can be combined with AQ-T216 to protect larger machines that also require differential protection and greater protection redundancy. AQ-G215 communicates using various protocols, including the IEC 61850 substation communication standard.

Highlights:

  • Cost-efficient synchronous machine protection.
  • Basic range of functionality.
AQ-G215_web_v3

Technical data

  • Non-directional overcurrent (I>; 50/51) - 4 stages (INST, DT or IDMT)
  • Non-directional earth fault (I0>; 50N/51N) - 4 stages (INST, DT or IDMT)
  • Directional overcurrent (Idir>; 67) - 4 stages (INST, DT or IDMT)
  • Directional earth fault (I0dir>; 67N/32N) - 4 stages (INST, DT or IDMT)
  • Negative sequence overcurrent/ Phase current reversal/ Current unbalance (I2>; 46/46R/46L) - 4 stages (INST, DT or IDMT)
  • Harmonic overcurrent (Ih>; 50H/51H/68H) - 4 stages (INST, DT or IDMT)
  • Circuit breaker failure protection (CBFP; 50BF/52BF)
  • Overvoltage (U>; 59) - 4 stages (INST, DT or IDMT)
  • Undervoltage (U<; 27) - 4 stages (INST, DT or IDMT)
  • Neutral overvoltage (U0>; 59N) - 4 stages (INST, DT or IDMT)
  • Sequence voltage (U1/U2>/<; 47/27P/59PN) - 4 stages (INST, DT or IDMT)
  • Overfrequency and underfrequency (f>/<; 81O/81U) - 8 stages (INST or DT)
  • Rate-of-change of frequency (df/dt>/<; 81R) - 8 stages (INST or DT)
  • Power protection (P, Q, S>/<; 32) - 4 stages (DT)
  • 100 % stator earth fault (U03rd>; 64S)
  • Underexcitation (Q<; 40)
  • Underimpedance (Z<; 21U)
  • Voltage-restrained overcurrent (Iv>; 51V)
  • Volts-per-hertz overexcitation (V/Hz>; 24)
  • Power factor protection (PF<; 55)
  • Machine thermal overload (TM>; 49M)
  • Resistance temperature detectors (RTD)
  • Voltage memory
  • Programmable stage (PGx>/<; 99)
  • Arc protection (IArc>/I0Arc>; 50Arc/50NArc) (optional)

  • Number of objects to control and monitor: 5
  • Number of indicators to monitor: 5
  • Number of setting groups: 8
  • Vector jump (Δφ; 78)
  • Synchrocheck (ΔV/Δa/Δf; 25)

  • Phase, sequence and residual currents (IL1, IL2, IL3, I01, I02)
  • Phase, sequence and residual voltages (UL1, UL2, UL3, UL12, UL23, UL31, U0)
  • Frequency (f)
  • Power (P, Q, S, pf) and Energy (E+, E-, Eq+, Eq-)
  • Power and energy class 0.5
  • Power and energy measurement accuracy of up to 0.2 % (optional)
  • Current transformer supervision
  • Voltage transformer supervision (60)
  • Circuit breaker wear monitoring
  • Total harmonic distortion (current)
  • Measurement recorder
  • Measurement value recorder
  • Event recorder (max. 15 000 permanent event records)
  • Disturbance recorder (max. 100 records á 5 seconds at 3.2 kHz sampling)

  • Current inputs: 5
  • Voltage inputs: 4
  • Digital inputs (fixed): 3
  • Digital outputs (fixed): 5
  • Number of empty slots: 3
  • Digital inputs: +8/16/24 (optional)
  • Digital outputs: +5/10 (optional)
  • Milliampere I/O module (4 mA outputs + 1 mA input) (optional)
  • RTD input module (8 RTD inputs) (optional)
  • Arc protection module (4 sensors + 2 HSO + 1 BI) (optional)
  • Communication media (see "Communication" below)
  • External I/O modules (see "Accessories" below)

  • Communication inputs
  • RJ-45 100 Mbps Ethernet (front panel, fixed)
  • RJ-45 100 Mbps Ethernet and RS-485 (rear panel, fixed)
  • Double RJ-45 Ethernet & IRIG-B communication module (optional)
  • Double ST Ethernet & IRIG-B communication module (optional)
  • Double LC (HSR/PRP) Ethernet communication module (optional)
  • Double RJ-45 (HSR/PRP) Ethernet communication module (optional)
  • RS-232 & serial fiber communication module (optional)
  • Communication protocols
  • IEC 61850 (edition 1)
  • IEC 60870-5-101/104
  • IEC 60870-5-103
  • Modbus/RTU and Modbus/TCP
  • DNP3
  • SPA

  • AX007 External 6-channel 2-/3-wire RTD input module (pre-configured)
  • AX008 External 8-channel thermocouple and mA input module (pre-configured)
  • AX009 Raising frame (87 mm)
  • AX010 Raising frame (40 mm)
  • AX011 Combiflex frame
  • AX012 Wall mounting bracket

Additional material

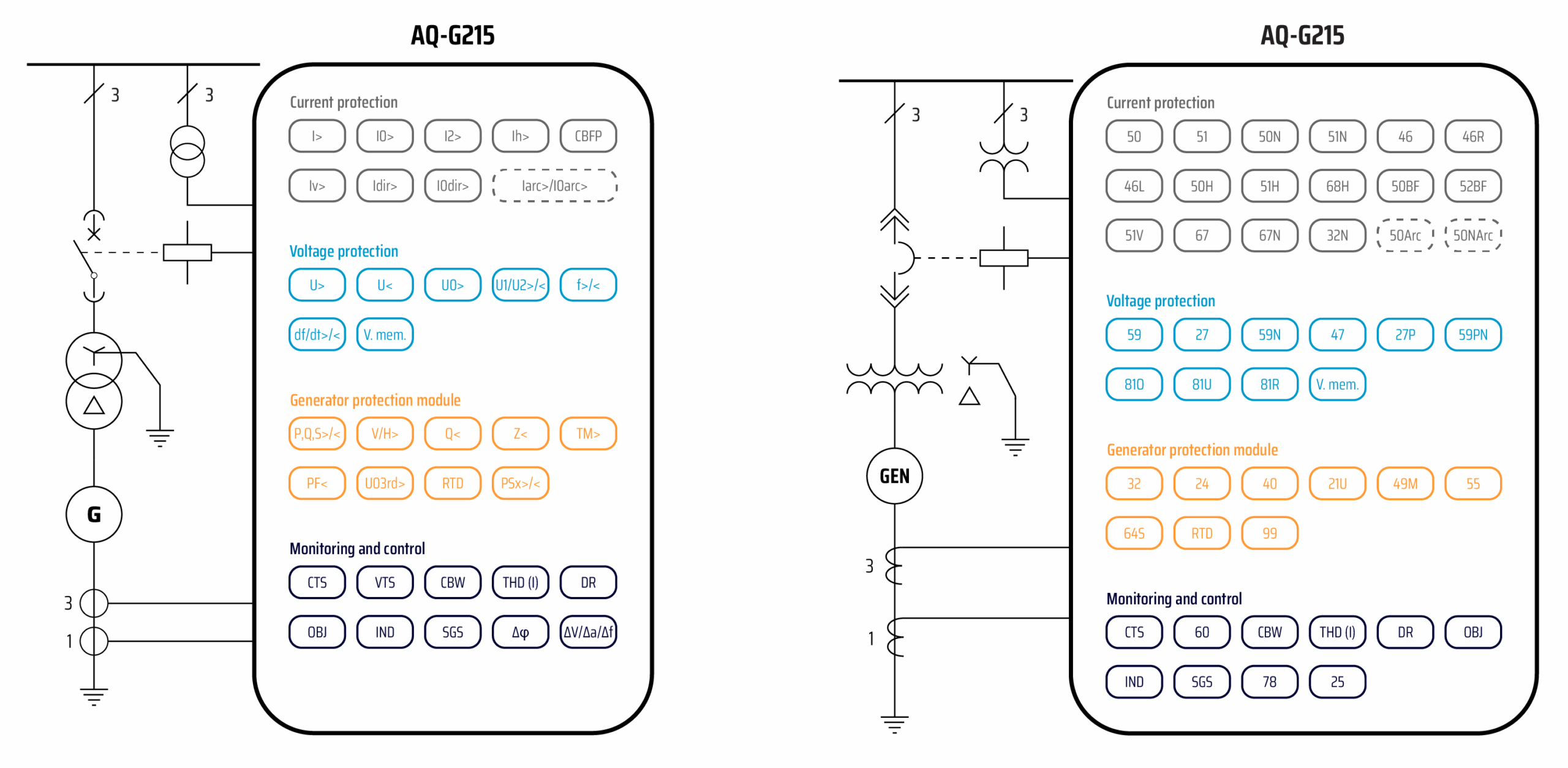

Application Drawing

An application image for AQ-G215 generator protection device, with one version drawn according to IEC standard symbols and the other according to IEEE/ANSI standard symbols.

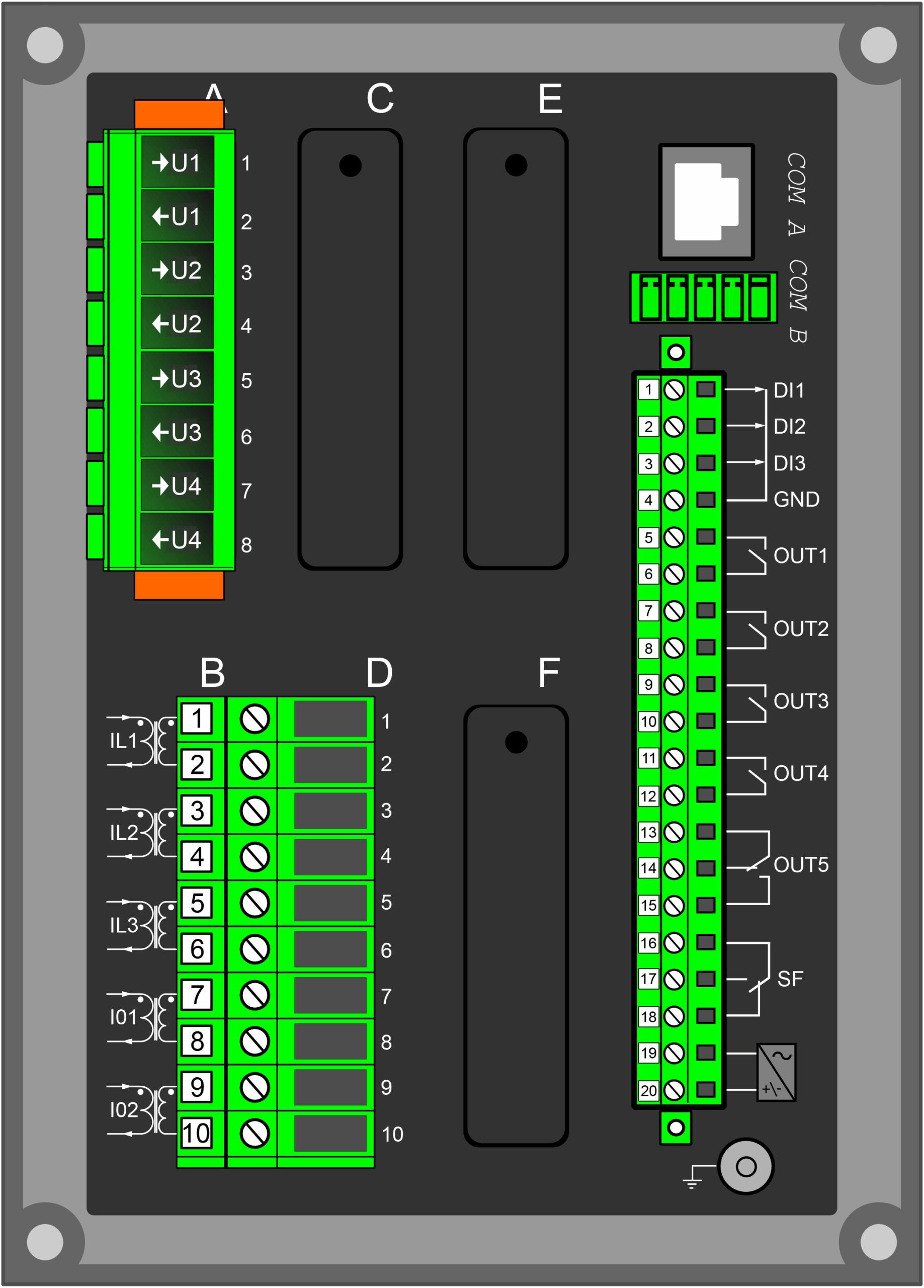

Device Rear Image

Device rear image_AQ-215_AAA

Device and Cut-out Image

AQ-210 dimensions and cut-out

Order Code

Order code_G215
