AQuench Arc quenching devices (MV) AQuench Arc quenching devices (MV) Ask for an offer Home Arc flash protection Description AQuench arc quenching devices for medium-voltage systems operate in less than 4 milliseconds from the detection of an arc flash to mitigate the risk of personnel injuries and damage to equipment. An AQuench device is installed as a part of an AQ 100 arc protection system. When an AQ 100 series device detects an arc fault, it simultaneously triggers the AQuench arc quenching system and trips the circuit breaker(s) that feed the fault. Then, the AQuench arc quenching device creates a low-impedance parallel path for the fault current to flow through. We offer AQuench devices in two different rated voltages: up to 17.5 kV and up to 24 kV. Please read more about their technical specifications below. Highlights: Auxiliary supply ranges from 110 to 250 V AC/DC. Includes the quenching device as well as its controller unit, reset tool, and connection cables. Additional connection fibers (3 m, 5 m, and 10 m) available. Applicable to both new and retrofit installations. Technical data Maximum rated voltage: 17.5 kV Short-circuit withstand: 31.5 kA for 3 s BIL: 95 kV Phase conductor replacement: 170 mm (total: 210 mm) Electric life: 5 operations below fault current Mechanical life: 30 operations Maximum rated voltage: 24 kV Short-circuit withstand: 50 kA for 3 s BIL: 125 kV Phase conductor replacement: 580 mm (total: 740 mm) Electric life: 5 operations below fault current Mechanical life: 30 operations AX001-3 Connection fiber (3 meters) AX001-5 Connection fiber (5 meters) AX001-10 Connection fiber (10 meters) Additional material Order Code Download order code Download AQ-SAS MV Standard Arc Schemes v.2.02 EN Related products AQ-1000 Arc quenching device (low-voltage) The AQ-1000 arc quenching device extinguishes arcing faults in systems with a maximum rated voltage of […] AQ-101 Arc flash protection device The AQ-101 arc flash protection device is a sophisticated microprocessor-based arc flash protection unit for arc […] AQ-101D Arc flash protection device AQ-101D is a sophisticated microprocessor-based arc flash protection device for arc light detection. It is designed […] AQ-101DLV Arc flash protection device The AQ-101DLV arc flash protection device is a sophisticated microprocessor-based arc flash protection unit for arc […] Ask for an offer or more information We provide a comprehensive range of services through our own skilled staff and a global network of partners. Name(Required) First Last Country(Required) Email(Required) Add attachment Company(Required) Max. file size 300 MB Phone Add attachment Max. file size: 10 MB. Description(Required) What colour is a firetruck?(Required) To confirm you are not a robot, please answer this question. GDPR(Required) I agree to the Privacy Policy *

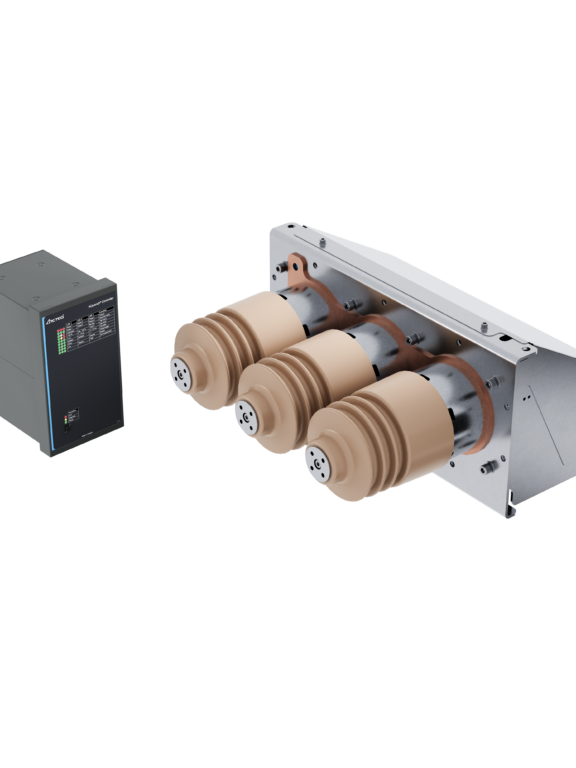

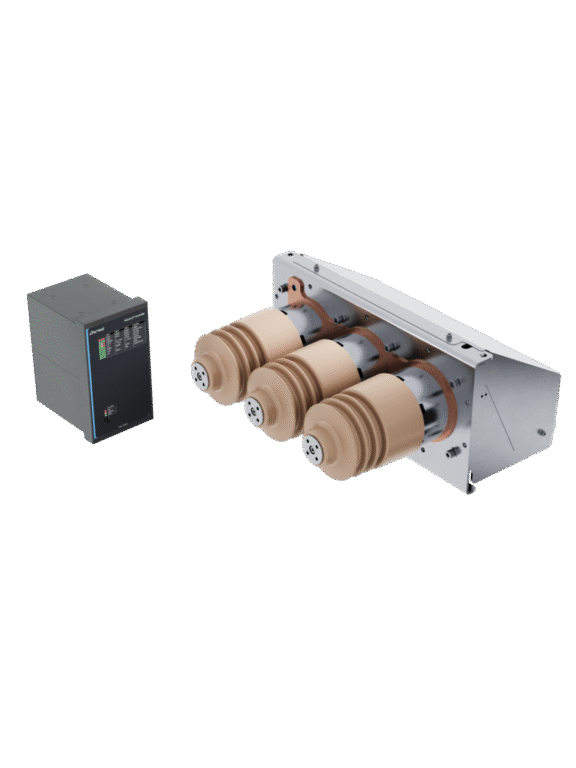

AQuench controller on the left and AQuench arc quenching device on the right

Description

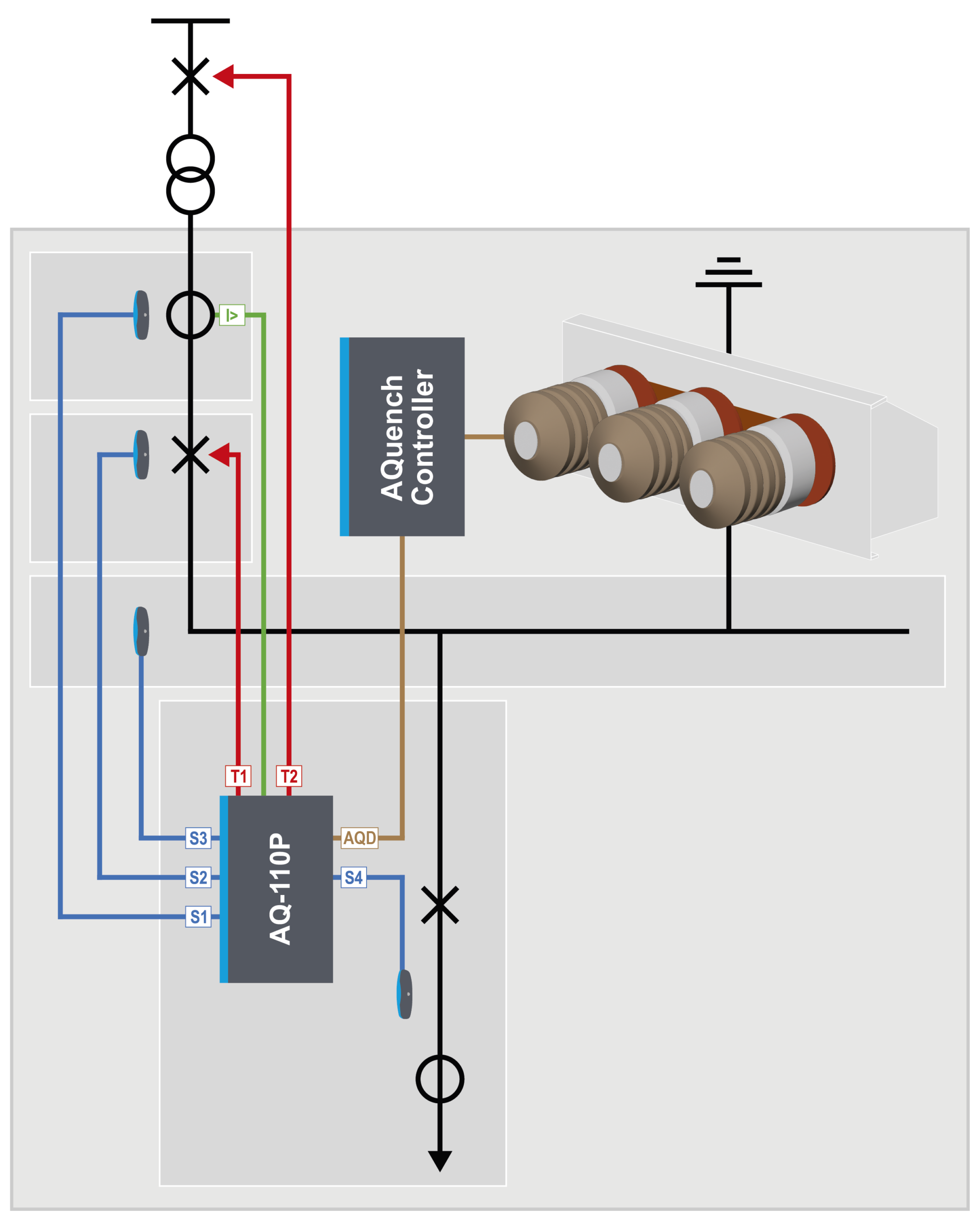

AQuench arc quenching devices for medium-voltage systems operate in less than 4 milliseconds from the detection of an arc flash to mitigate the risk of personnel injuries and damage to equipment. An AQuench device is installed as a part of an AQ 100 arc protection system. When an AQ 100 series device detects an arc fault, it simultaneously triggers the AQuench arc quenching system and trips the circuit breaker(s) that feed the fault. Then, the AQuench arc quenching device creates a low-impedance parallel path for the fault current to flow through.

We offer AQuench devices in two different rated voltages: up to 17.5 kV and up to 24 kV. Please read more about their technical specifications below.

Highlights:

Auxiliary supply ranges from 110 to 250 V AC/DC.
Includes the quenching device as well as its controller unit, reset tool, and connection cables.
Additional connection fibers (3 m, 5 m, and 10 m) available.
Applicable to both new and retrofit installations.
