Description
The AQ-F255 Feeder Protection Devices offer a modular protection and control solution for applications that require a large I/O capacity. Additionally, depending on the model the devices integrate various protection functions. You can add up to 11 I/O or communication modules into the device for extensive monitoring and control applications. The AQ-F255 Feeder Protection Devices communicate using various communication protocols, including communication according to the IEC 61850 standard.
We offer four (4) function packages for the AQ-F255 Feeder Protection Device: A, R, S, and V. See below for their individual differences.

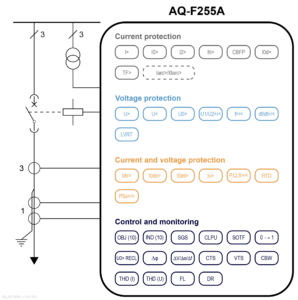

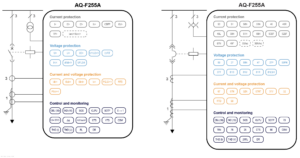

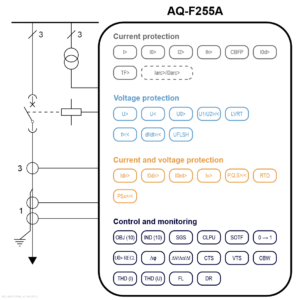

- AQ-F255A – full feeder functionality

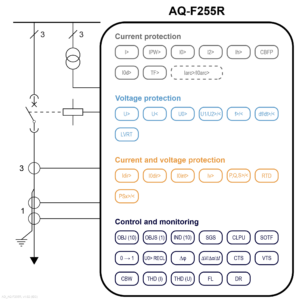

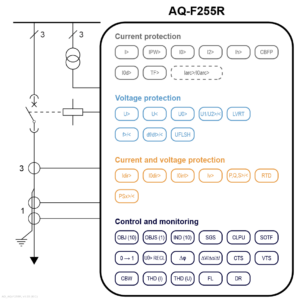

- AQ-F255R – full feeder functionality + special object for phase-specific tripping and recloser control

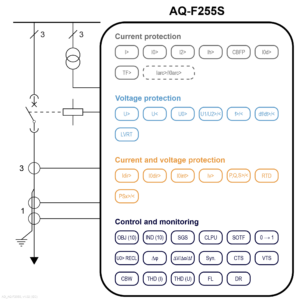

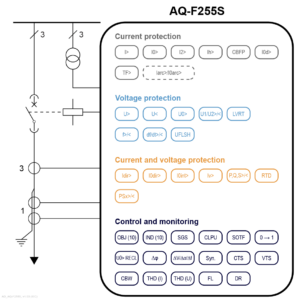

- AQ-F255S – full feeder functionality + synchronizer

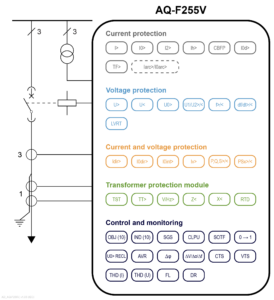

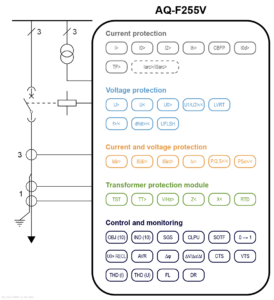

- AQ-F255V – full feeder functionality + AVR + transformer module
Highlights:
- A large I/O capacity.
- Current-based and voltage-based protection functions.
- Optional power and energy measurement accuracy 0.2 %.
- Low-voltage ride-through protection.
- IEC 62443-4-2 compliant cybersecurity (security level 1).
- IEC 61850 2nd Edition.
